Viewing the vSphere Client Remote Plug-in Sample

After you build and register the remote plug-in sample, you can view it in the vSphere Client.

To view the remote plug-in sample, you must run the plug-in server. If the server is not running yet, change to the root directory of the remote plug-in sample and use a command similar to the following example, but substitute the details that pertain to your vCenter Server:

java	-jar target/remote-plugin-sample-6.7.0.jar \
  --vcenter.guid=223b94f2-af15-4613-5d1a-a278b19abc09 \
  --vcenter.thumbprint=3fccb81448ca98bbbf2b75dbb3ab199886accb1f \
  --vcenter.fqdn=vcenter-1.example.com --vcenter.port=443

To view the plug-in user interface, open a browser window and connect to the vCenter Server instance where you registered the plug-in. Use the fully qualified domain name of the vCenter Server to match the server certificate. From the welcome screen you can launch the vSphere Client.

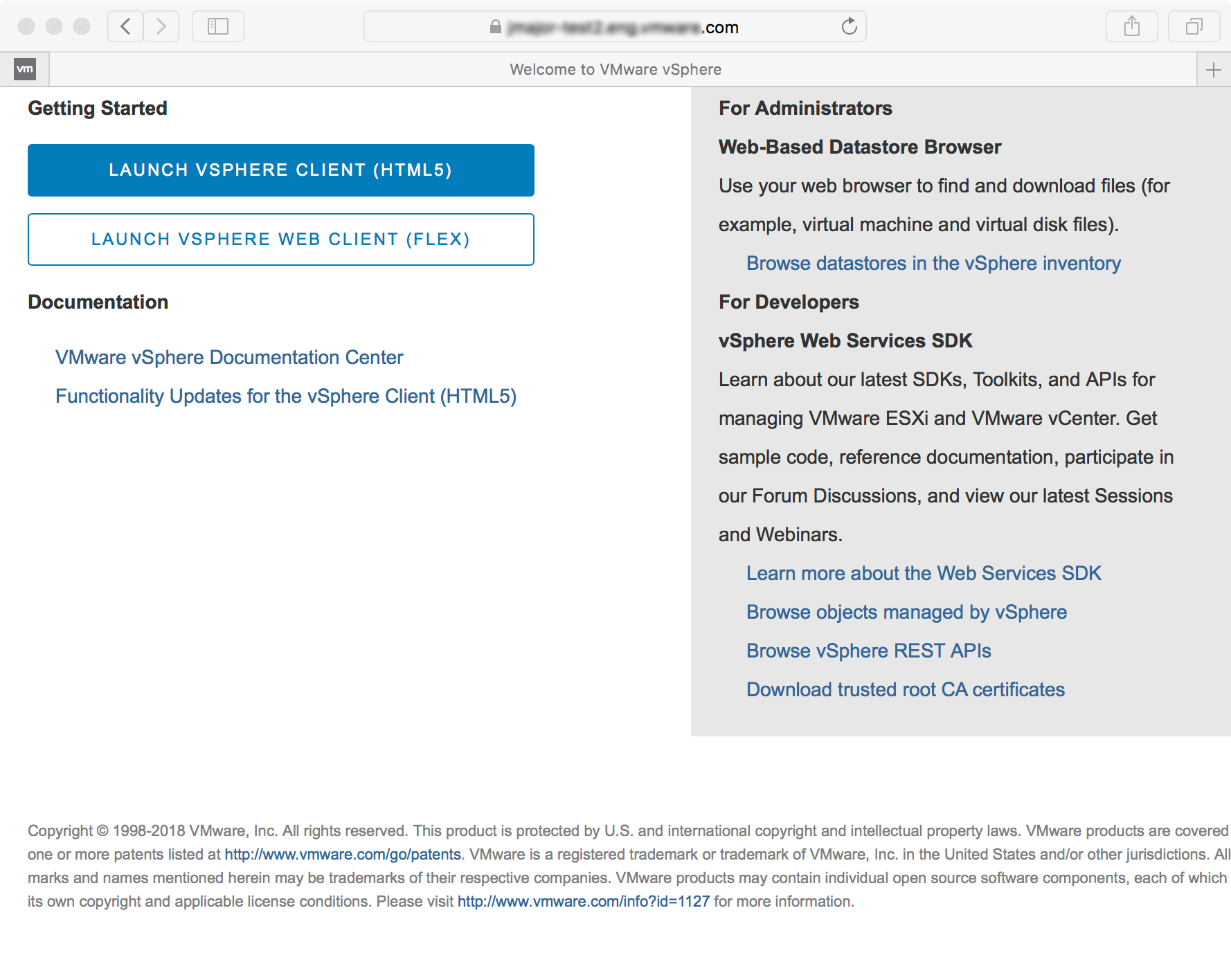

Figure 1. vCenter Server Welcome Screen
Screenshot shows the initial screen when using the vSphere Client.

After you select LAUNCH VSPHERE CLIENT (HTML5) and authenticate with vCenter Server, the vSphere Client displays the home page with a vSphere HTML SDK Plugin link in the object navigator pane on the left. The link leads to the remote plug-in global view.

The plug-in global view includes the following subviews:
  • A welcome page is the default page for the global view.
  • A settings page allows you to change the number of items displayed in the Chassis List page.
  • A Chassis List page displays summary information about the Chassis objects currently in the store. The Chassis store is initialized with several random Chassis objects for display. On the Chassis List page you can do the following actions:
    • Edit the Chassis object properties in a modal dialog.
    • Display related Host objects.
    • Display the Monitor subview or the Configure subview.
The code that supports these actions demonstrates how to use a modal dialog, how to create, delete, and update Chassis objects, and how to make calls to the plug-in server and the vCenter Server. The following illustrations show some of the features of the global view.

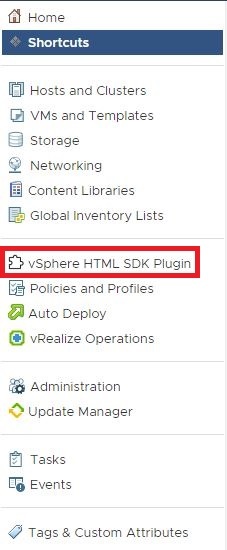

Figure 2. Selecting the Sample Plug-in Global View in the Navigation Pane
Screenshot shows location of menu item to view sample plug-in.

The Global View extension point is specified by the following lines from the manifest file, plugin.json:
"global": {
   "view": {
      "navigationId": "com.vmware.remote.sample.entrypoint",
      "uri": "index.html?view=entry-point",
      "navigationVisible": false
   }
}
The Global View content is specified in the file entry.point.component.html.

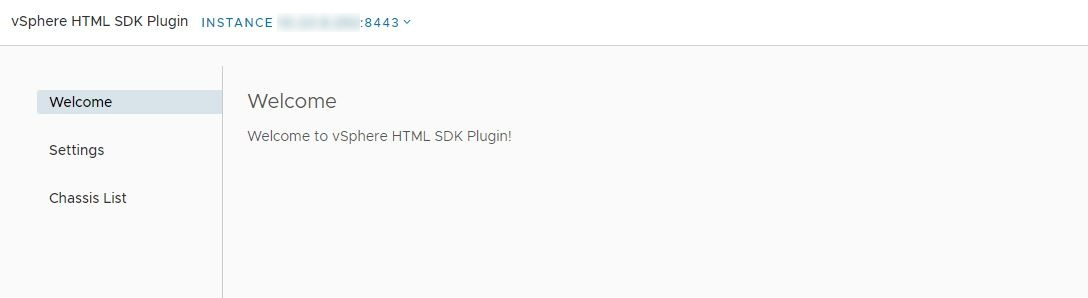

Figure 3. Sample Plug-in Global View Welcome Page
Screenshot shows a sample plug-in global view.

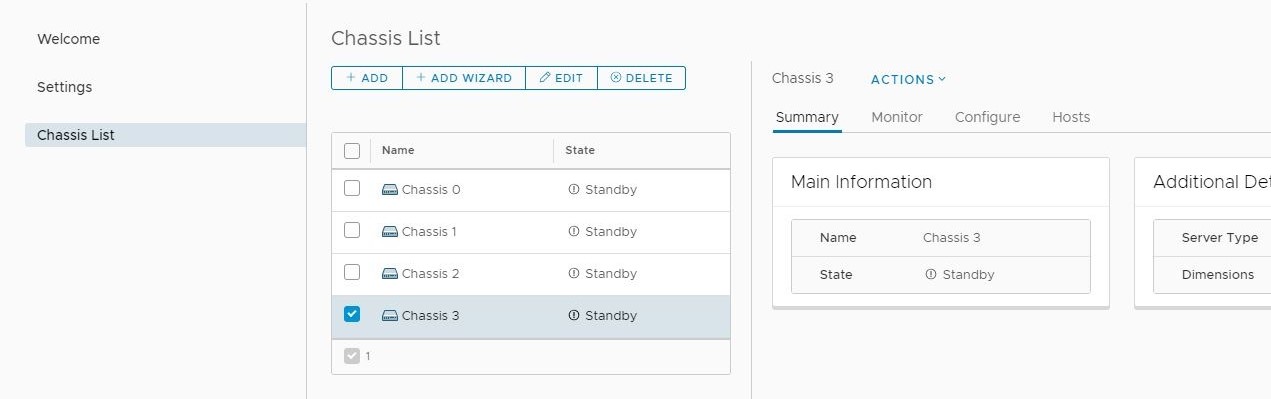

Figure 4. Sample Plug-in Global View Chassis List Page
Screenshot shows a plug-in view that lists Chassis objects.

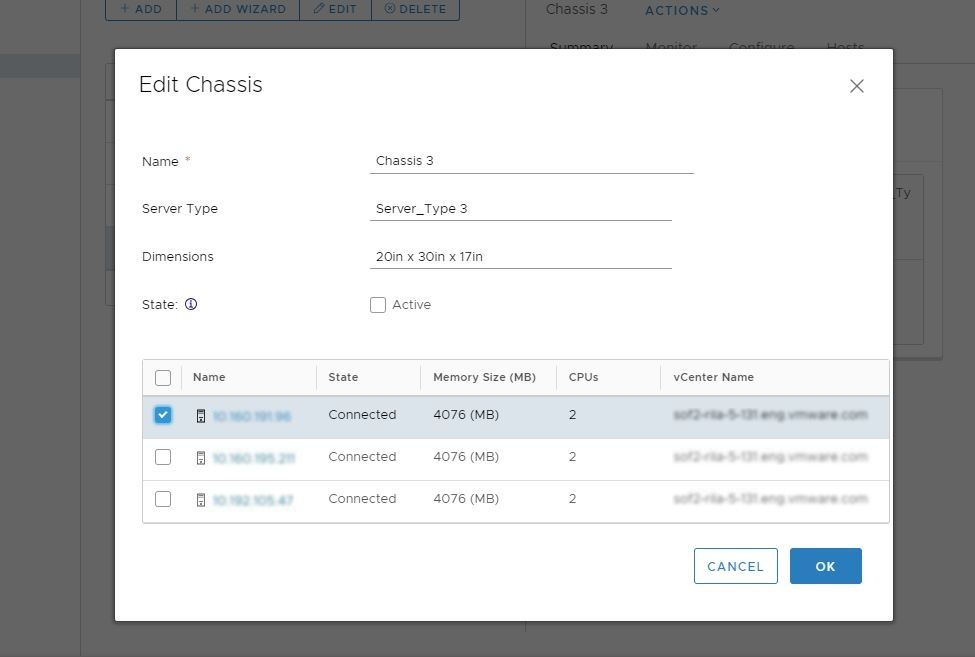

Figure 5. Sample Plug-in Edit Chassis Dialog
Screenshot shows a plug-in view to edit Chassis object data.

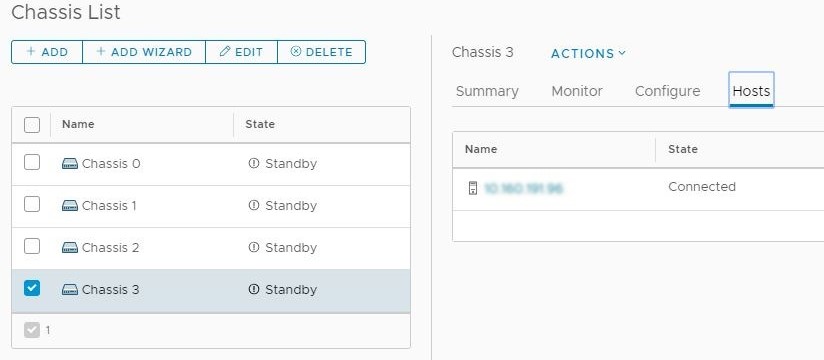

Figure 6. Sample Plug-in Chassis with Related Hosts
Screenshot shows Chassis object with related HostSystem objects.

In addition to the global view and its subviews, the remote plug-in sample provides portlets that show how to extend the VirtualMachine vSphere object. You can see the portlets in context in the following illustrations.

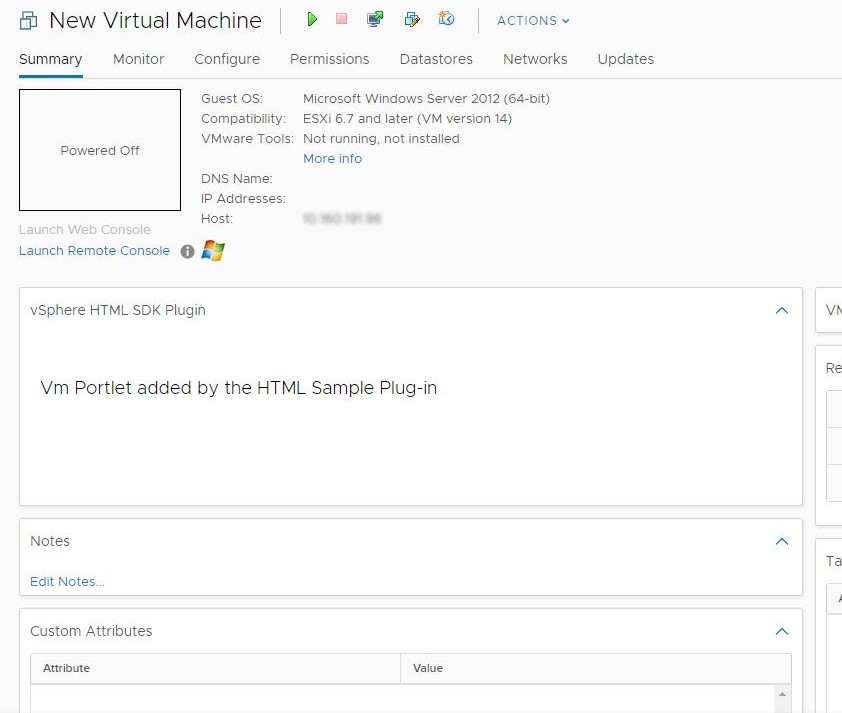

Figure 7. Portlet Extending the VirtualMachine Summary View
Screenshot shows a view that extends the Summary tab of the VirtualMachine object.
The VirtualMachine Summary View extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "VirtualMachine": {
      "summary": {
         "view": {
            "uri": "index.html?view=vm-portlet",
         }
      },
      ...
   }
}

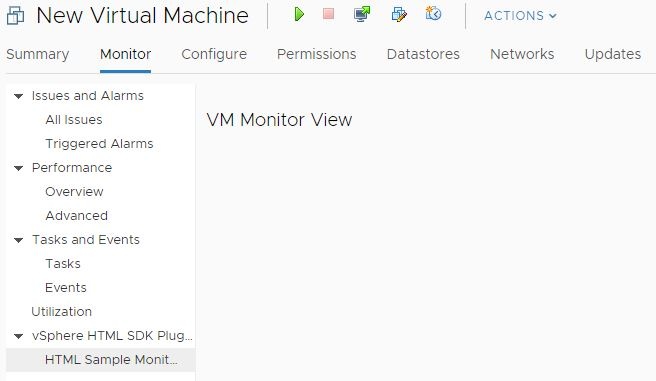

Figure 8. Portlet Extending the VirtualMachine Monitor View
Screenshot shows a plug-in extension to the VirtualMachine Monitor view.
The VirtualMachine Monitor View extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "VirtualMachine": {
      ...
      "monitor": {
         "views": {
            "navigationId": "com.vmware.remote.sample.monitor",
            "labelKey": "RemoteSample:vm.monitor.view.title",
            "uri": "index.html?view=vm-monitor",
         }
      }
   }
}

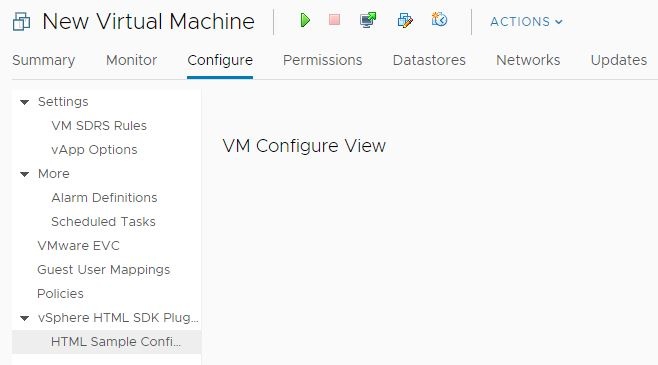

Figure 9. Portlet Extending the VirtualMachine Configure View
Screenshot shows a plug-in extension to the VirtualMachine Configure view.
The VirtualMachine Configure View extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "VirtualMachine": {
      "configure": {
         "views": {
            "navigationId": "com.vmware.remote.sample.configure",
            "labelKey": "RemoteSample:vm.configure.view.title",
            "uri": "index.html?view=vm-congfigure",
         }
      }
   }
}

The remote plug-in sample shows how to add an action item to a context menu for a VirtualMachine object. You can see how this appears in the following illustration.

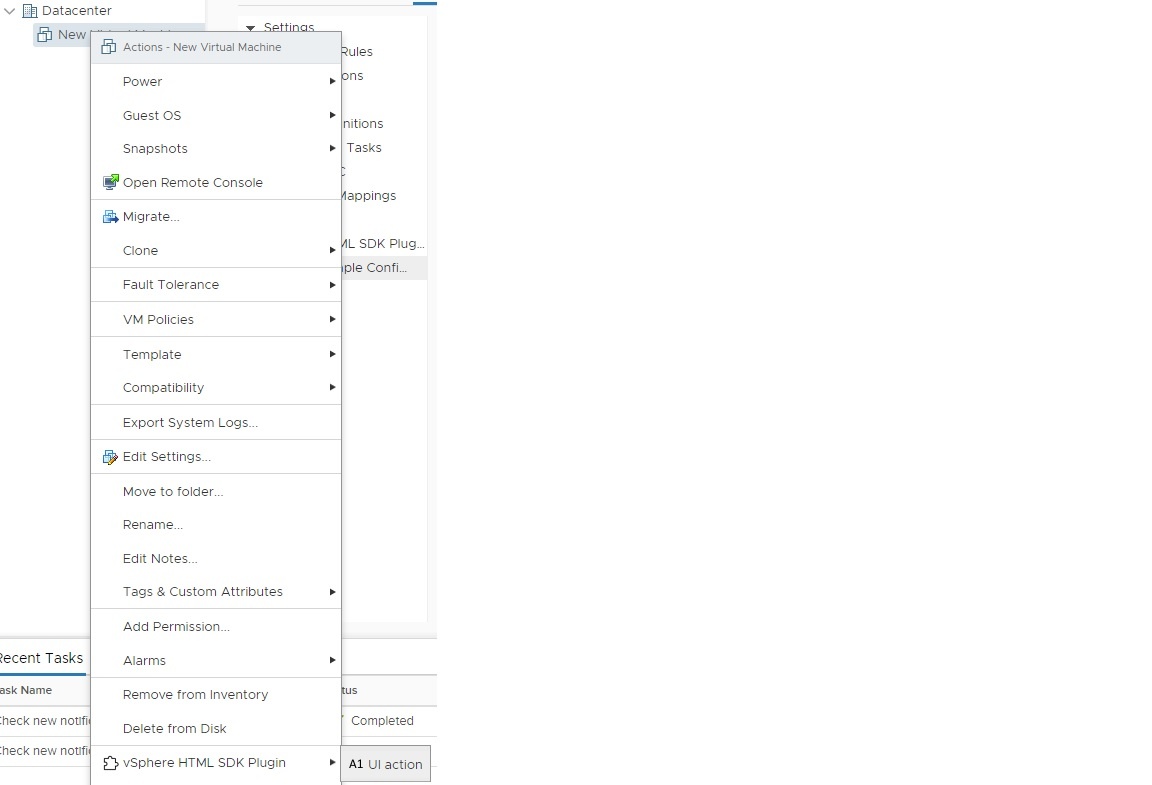

Figure 10. Action Added to VirtualMachine Context Menu
Screenshot shows an item added to the VirtualMachine context menu by a plug-in extension.
The VirtualMachine context menu extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "VirtualMachine": {
      "menu": {
         "actions": {
            "labelKey": "RemoteSample:vm.action.label",
            "icon": {
               "name": "action-1"
            },
            "trigger": {
               "type"; "modal",
               "uri": "index.html?view=vm-action-modal",
               "titleKey": "RemoteSample:vm.action.model.title",
               "size": {
                  "width": 600,
                  "height": 250
               }
            }
         }
      }
   }
}

The remote plug-in sample displays a HostSystem Summary view and a HostSystem Monitor view also. The Summary view shows the number of related Chassis objects. You click the number to reach the Monitor view. The Monitor view displays a datagrid listing all available Chassis objects. To create a relation between a HostSystem and a Chassis object, select the checkbox beside the Chassis object and click Update.

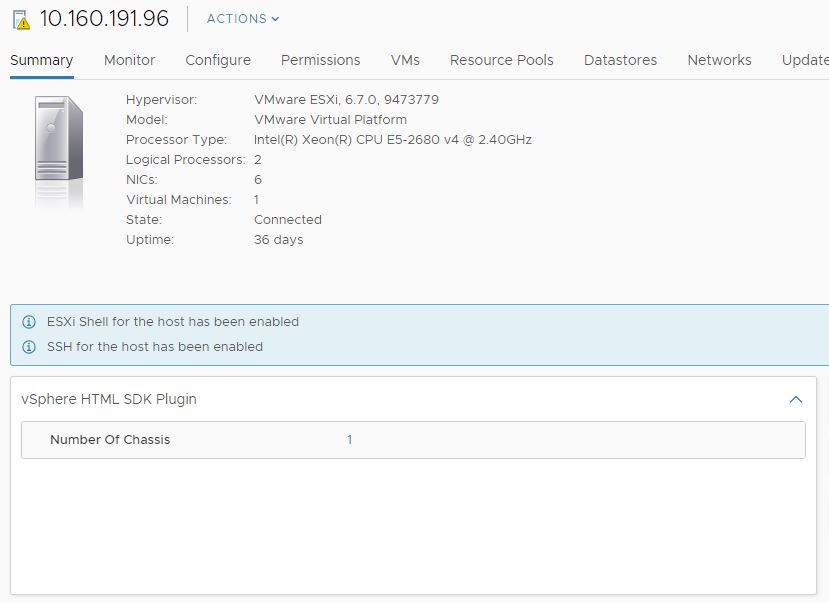

Figure 11. Portlet Extending the HostSystem Summary View
Screenshot shows a plug-in extension to the HostSystem Summary view.
The HostSystem Summary View extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "HostSystem": {
      "summary": {
         "view": {
            "uri": "index.html?view=host-summary"
         }
      }
   }
}

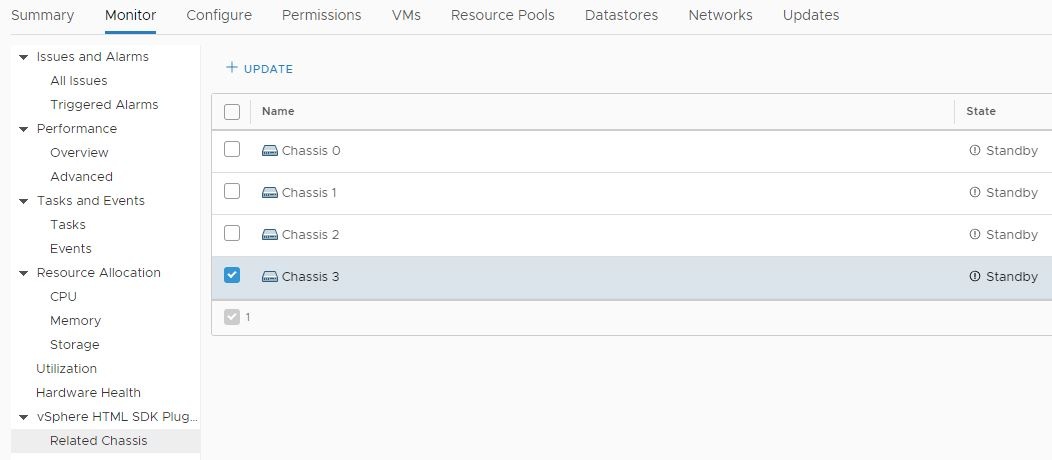

Figure 12. Portlet Extending the HostSystem Monitor View
Screenshot shows a plug-in extension to the HostSystem Monitor view.
The HostSystem Monitor View extension point is specified by the following lines from the manifest file, plugin.json:
"objects": {
   "HostSystem": {
      "monitor": {
         "views": [
            {
               "navigationId": "hostMonitor",
               "labelKey": "host.monitor.view.title",
               "uri": "index.html?view=host-monitor"
            }
         ]
      }
   }
}
