Monitor RAID Controller State

RAID controller state is useful to system administrators who need to monitor system health. This example shows how you can report the health state of RAID controllers on the managed server.

This example assumes you have installed a VIB that contains an implementation of the Host Hardware RAID profile, defined by the SNIA. VMware does not implement this profile, but prominent hardware vendors provide implementations for their storage controllers.

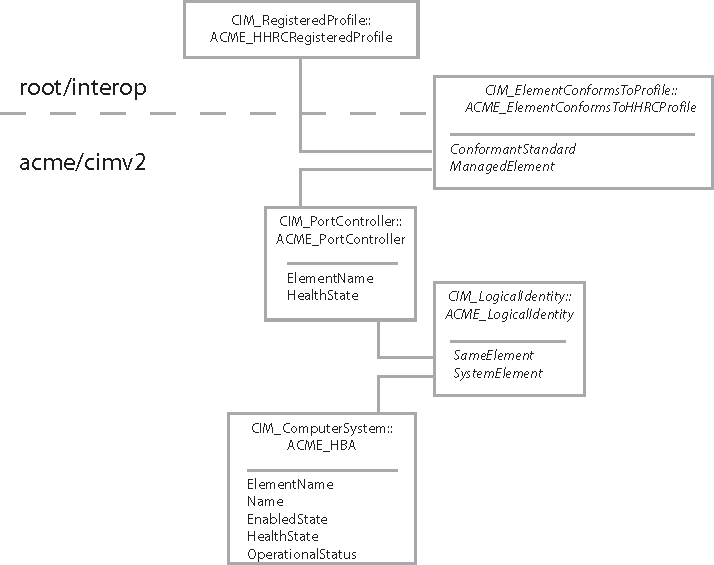

You can enumerate the controllers by starting from the Interop namespace and traversing associations from the Scoping Instance of the profile. Locating RAID Controllers shows the relationships of the CIM objects involved. Locating RAID Controllers uses a fictitious namespace and class names that begin with the prefix ACME_.

Note: This example is consistent with versions of SMI-S prior to version 1.4. It is not consistent with version 1.5 or later. Early releases of SMI-S 1.4 are also consistent.

The CIM_PortController instance is logically identical to an instance of CIM_ComputerSystem subclassed as ACME_HBA. The ACME_HBA instance is the logical entity that is associated with the controller port objects.

This pseudocode depends on the pseudocode in Make a Connection to the CIMOM and Mapping Integer Property Values to Strings.

To locate RAID controllers

Procedure

Connect to the server URL.

Specify the Interop namespace, supplied as a parameter, for the connection.

use wbemlib
use sys
use connection renamed cnx
connection = Null

params = cnx.get_params()
if params is Null
   sys.exit(-1)
interop_params = params
interop_params['namespace'] = 'root/interop'
connection = cnx.connect_to_host( interop_params )
if connection is Null
   print 'Failed to connect to: ' + params['host'] + ' as user: ' + params['user']
   sys.exit(-1)

Locate the CIM_RegisteredProfile instance for the Host Hardware RAID Controller profile.

use registered_profiles renamed prof

profile_instance_name = prof.get_registered_profile_names( connection )
hhrc_instance_name = Null
for instance_name in profile_instance_names
   instance = connection.GetInstance( instance_name )
   if instance[ ’RegisteredName’ ] == ’Host Hardware RAID Controller’
      hhrc_instance_name = instance_name
      break
if hhrc_instance_name is Null
   print 'Host Hardware RAID Controller profile not registered.'
   sys.exit(-1)

Traverse the CIM_ElementConformsToProfile association to reach the CIM_PortController instances for the Host Hardware RAID Controller profile on the managed server.

pc_instance_names = connection.AssociatorNames( hhrc_instance_name, \
                                            AssocClass = 'CIM_ElementConformsToProfile', \
                                            ResultClass = ’CIM_PortController’ )
if len( pc_instance_names ) is 0
   print 'Error:  No RAID port controllers found.'
   sys.exit(-1)

For each port controller instance, traverse the CIM_LogicalIdentity association to reach the matching instance of CIM_ComputerSystem representing the RAID controller.

for pc_instance_name in pc_instance_names
   controller_instance_names = connection.AssociatorNames( pc_instance_name, \
                                              AssocClass = 'CIM_LogicalIdentity', \
                                              ResultClass = ’CIM_ComputerSystem’ )
   cs_instance_name = controller_instance_names[ 0 ]

For the resulting controller instance, print the ElementName, Name, EnabledState, HealthState, and OperationalStatus properties.

This pseudocode provides default values for the properties. VMware cannot guarantee that your hardware vendor has implemented all the properties used in this example.

use value_mapper renamed map

   instance = connection.GetInstance( cs_instance_name )
   if instance.key( ’ElementName’ )
      element_name = instance[ ’ElementName’ ]
   else
      element_name = ’ElementName not available’
   if instance.key( ’Name’ )
      name = instance[ ’Name’ ]
   else
      name = ’Name not available’
   if instance.key( ’EnabledState’ )
      enabled_state = map.map_instance_property_to_string( connection, \
                                                           instance, \
                                                           ’EnabledState’ )
   if not enabled_state
      enabled_state = ’not available’
   if instance.key( ’HealthState’ )
      health_state = map.map_instance_property_to_string( connection, \
                                                          instance, \
                                                          ’HealthState’ )
   if not health_state
      health_state = ’not available’
   if instance.key( ’OperationalStatus’ )
      operational_status = map.map_instance_property_to_string( connection, \
                                                                instance, \
                                                                ’OperationalStatus’ )
   if not operational_status
      operational_status = ’not available’
   print "%s (%s)’ % ( element_name, name )
   print ’ EnabledState: ’ + enabled_state
   print ’ HealthState: ’ + health_state
   print ’ OperationalStatus: ’ + operational_status

A sample of the output looks like the following:

Controller 0 SAS/SATA (1F7D708944192F00)
  EnabledState: Enabled
  HealthState: Minor failure
  OperationalStatus: Degraded
