Determining the Current vSAN On-Disk Format

Before upgrading the vSAN on-disk format, determine the current version of the on-disk format of your vSAN cluster. You must also determine the latest supported format for the ESXi build that the vSAN cluster is running.

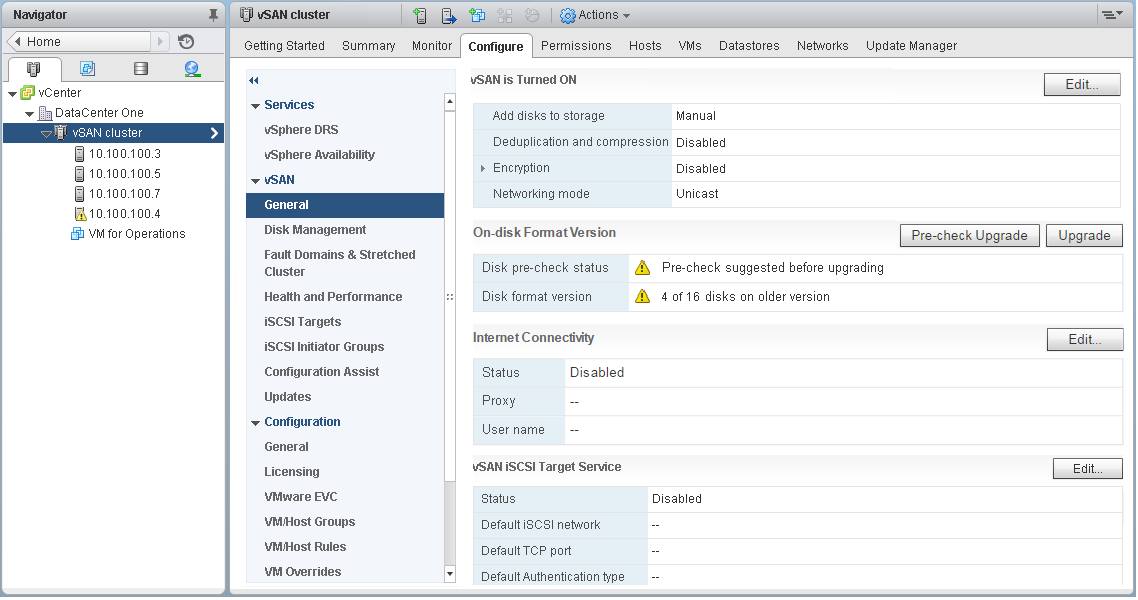

In the vSphere Client, you can determine the current on-disk format under Configure > vSAN > Disk Management on the vSAN cluster.

vSphere Client GUI that enables you to configure disk management.

To determine the vSAN on-disk format programmatically, first connect to the cluster:

cluster = getClusterInstance(args.clusterName, si)
vcMos = vsanapiutils.GetVsanVcMos(si._stub, context=context)
vsanUpgradeSystem = vcMos['vsan-upgrade-systemex']
supportedVersion = vsanUpgradeSystem.RetrieveSupportedVsanFormatVersion(cluster)
print 'The highest vSAN disk format version that given cluster supports is
{}
'.format(supportedVersion)

Next, create a function that compares the current on-disk format version to the latest supported version:

def hasOlderVersionDisks(hostDiskMappings, supportedVersion):


    for hostDiskMappings in hostDiskMappings:
    for diskMapping in hostDiskMappings:
    if diskMapping.ssd.vsanDiskInfo.formatVersion < supportedVersion:
    return True
for disk in diskMapping.nonSsd:
    if disk.vsanDiskInfo.formatVersion < supportedVersion:
    return True
return False

Finally, gather each of the disk group member devices into diskMappings, and then pass them into the hasOlderVersionDisks function to determine if an upgrade is necessary or not:

vsanSystems = CollectMultiple(si.content, cluster.host,
                              ['configManager.vsanSystem']).values()
vsanClusterSystem = vcMos['vsan-cluster-config-system']
diskMappings = CollectMultiple(
    si.content,
    [vsanSystem['configManager.vsanSystem'] for vsanSystem in vsanSystems],
    ['config.storageInfo.diskMapping']).values()
diskMappings = [
    diskMapping['config.storageInfo.diskMapping']
    for diskMapping in diskMappings
]
needsUpgrade = hasOlderVersionDisks(diskMappings, supportedVersion)
