Using the QueryList Operation

The SMS API QueryList operation returns a QueryResult data object that contains the properties of all instances of the entity type specified in the query.

1. Relationship Matrix
2. Entity Properties
3. Enumeration List

QueryList Operation Parameters

The QueryList operation supports queries on these entities:

• datacenter
• resourcePool
• cluster
• host
• datastore
• virtual machine
• storagePod

Specify the entity by passing its value using the queryEntityType parameter. The queryEntityType parameter is required. You must also pass the managed object reference of the ServiceInstance in the method invocation.

QueryList supports two optional parameters, querySpec and contextEntity.

• Use the contextEntity parameter to obtain results for a specified managed entity only.
• Use the querySpec parameter to specify additional constraints for the result set, including a maximum number of rows and sort criteria.

QueryResult Data Object

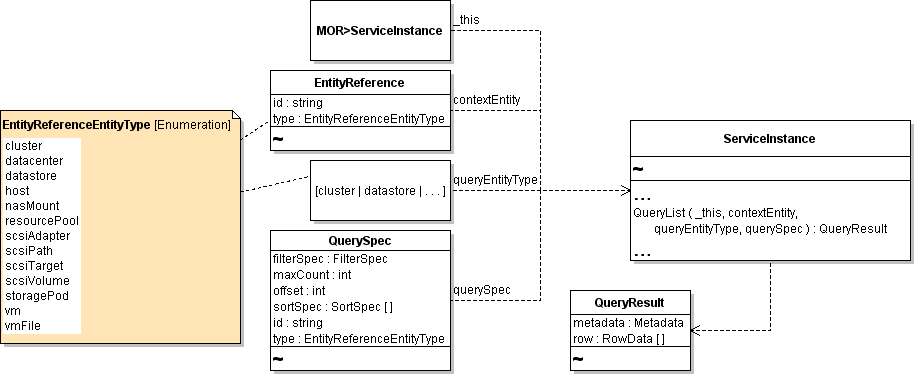

QueryList returns a result set in the form of a QueryResult data object. QueryResult is a complex object consisting of two other data objects that comprise its metadata and row properties:

• The metadata property is an instance of a Metadata data object.
• The row property is an array of RowData data objects.

An instance of a Metadata data object has properties describing the number of rows in the result set. A Metadata data object also has a propertyName property that consists of an array of strings identifying the column names in the result set.
